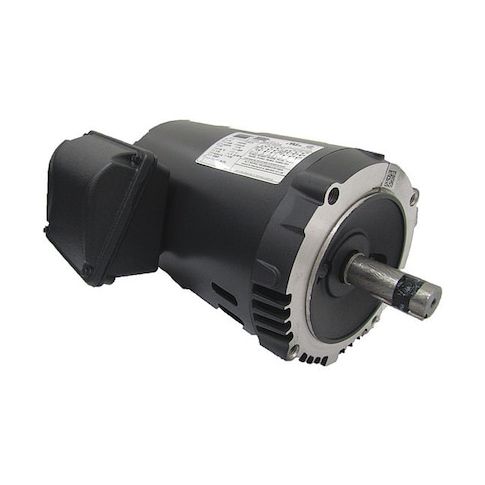

Three-Phase General Purpose Motor, 3 HP, 143/5TC Frame, 230/460V AC Voltage, 3475 Nameplate RPM MPN:36VF50
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860446
Three-Phase General Purpose Motor, 3 HP, 143/5TC Frame, 230/460V AC Voltage, 3475 Nameplate RPM
This 3 HP three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial equipment, pumps, and conveyor systems. Its 143/5TC frame and 230/460V AC voltage make it suitable for use in various environments. The motor's high efficiency and continuous duty rating ensure reliable operation, while its ball bearings and steel frame provide durability. With a nameplate RPM of 3475 and a service factor of 1.15, this motor is ideal for applications requiring high power and speed. Its compact size and ease of installation make it a convenient choice for many industrial applications.
Top product features:
- Three-Phase General Purpose Motor design provides continuous duty operation
- Open Drip Proof Motor Enclosure Design protects against splashing water and dust
- Ball Motor Bearings ensure smooth and quiet operation
Top product applications:
- Industrial manufacturing processes
- Pumps and blowers in commercial settings
- Conveyor systems in warehousing and distribution centers
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 3475, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.3/3.6 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Conduit Box
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 12.40
- Package Height: 9.40
- Package Weight: 37.80
Product info last updated on March 18, 2026 4:26am UTC
Category: Motors
