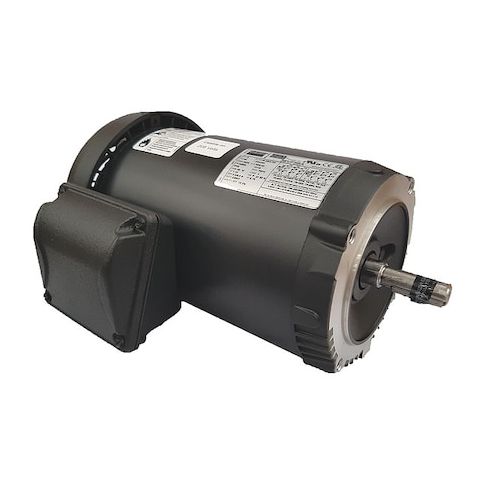

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1160 Nameplate RPM MPN:36VF55
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860437
Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1160 Nameplate RPM
This 1/4 HP three-phase general purpose motor from Dayton is designed for continuous duty applications. With a totally enclosed fan cooled motor enclosure and ball bearings, it provides reliable operation in a variety of environments. The motor's high service factor of 1.15 allows for overloading up to 15% above nameplate rating, making it suitable for applications requiring occasional high torque. Ideal for use in industrial settings, such as conveyor systems, pumps, and fans, this motor offers high efficiency and durability, with a nominal efficiency of 68%. It meets CE, CSA, and UL standards for safety and performance.
Top product features:
- Three-Phase General Purpose Motor design provides a Totally Enclosed Fan Cooled Motor Enclosure for efficient heat dissipation.
- The motor features Ball Motor Bearings for smooth and durable operation.
- The motor has a maximum Ambient Temperature rating of 40 Degrees C for reliable performance in various environments.
Top product applications:
- Pump motor
- Conveyor motor
- Fan motor
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 1160, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.0/0.55 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 68 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 11.25
- Package Height: 9.50
- Package Weight: 22.50
Product info last updated on February 1, 2026 12:02am UTC
Category: Motors
