Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 3435 Nameplate RPM MPN:36VF76
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860400

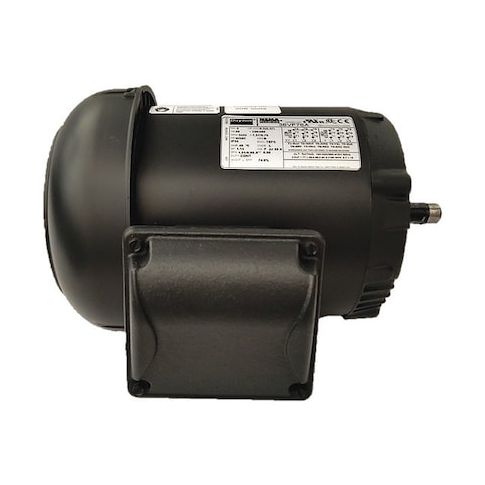

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 3435 Nameplate RPM
This 1/2 HP three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial machinery, HVAC systems, and commercial equipment. With a nameplate RPM of 3435 and a voltage range of 230/460V AC, this motor is ideal for use in high-temperature environments and can handle continuous duty cycles. Its totally enclosed fan-cooled design and steel frame ensure durability and reliability, while its ball bearings provide smooth operation. Perfect for applications requiring high efficiency, this motor boasts a nominal efficiency of 72.5% and meets CE, CSA, and UL standards for added assurance.
Top product features:
- Three-phase design allows for efficient operation in a wide range of applications
- Totally enclosed fan cooled motor enclosure design provides a safe and reliable operating environment
- Ball motor bearings ensure smooth and quiet operation
Top product applications:
- Industrial Automation
- Material Handling Equipment
- Pump and Fan Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 3435, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.57/0.78 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 12.50
- Package Height: 9.40
- Package Weight: 21.00
Product info last updated on February 1, 2026 3:30am UTC
Category: Motors
