Three-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1, 145 Nameplate RPM MPN:36VF84
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860376

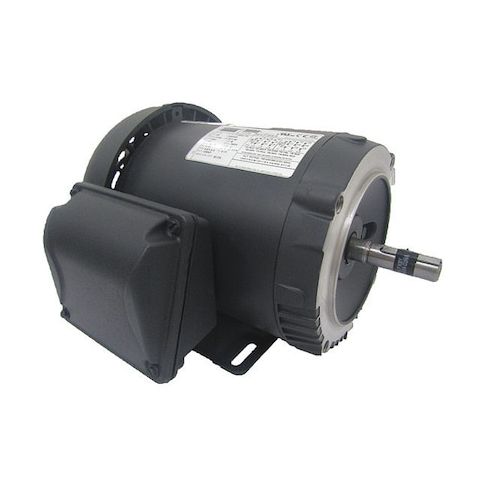

Three-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1, 145 Nameplate RPM
This Dayton three-phase general purpose motor is designed for a wide range of applications, including industrial machinery, HVAC systems, and pumps. Its 1 HP rating and 1,145 nameplate RPM make it suitable for moderate to high-demand tasks. The motor's totally enclosed fan cooled design and steel frame ensure durability and reliability in demanding environments. With a high efficiency rating of 82.5% and a service factor of 1.15, this motor provides cost-effective operation and extended lifespan. Ideal for continuous duty applications, it is CSA and UL certified for safe use in a variety of industrial settings.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled motor enclosure design
- Ball motor bearings
Top product applications:
- Pump applications in chemical processing and wastewater treatment
- Conveyor systems in manufacturing and logistics
- Fans in HVAC and ventilation systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,145, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.3/1.6 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, Continuous Duty, 1,101-1,200, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.60
- Package Width: 11.70
- Package Height: 10.40
- Package Weight: 38.30
Product info last updated on January 30, 2026 11:01pm UTC
Category: Motors
