Three-Phase General Purpose Motor, 1 1/2 HP, 143/5TC Frame, 230/460V AC Voltage, 3510 Nameplate RPM

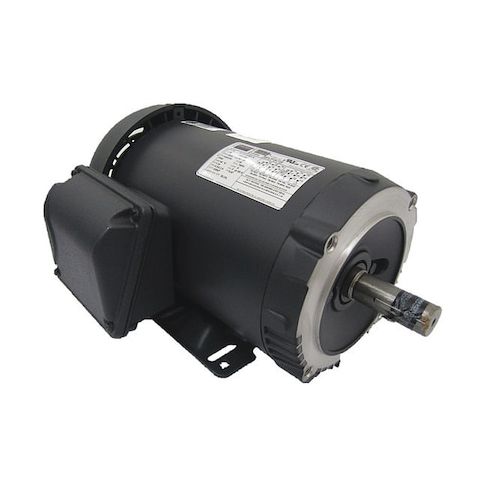

This reliable 1.5 HP three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial use. With a totally enclosed fan-cooled motor enclosure and rigid base, it can operate in demanding environments with high ambient temperatures. The motor's efficiency and continuous duty rating make it ideal for applications requiring consistent performance. Suitable for use in HVAC systems, conveyor belts, and other machinery, this motor offers a cost-effective solution for businesses seeking a reliable and efficient power source. Its compact design and easy installation make it a convenient choice for various industrial settings.
Top product features:
- Three-Phase General Purpose Motor
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pump applications for water, oil, or chemical processing
- Fans and blowers in industrial ventilation systems
- Material handling systems such as conveyor belts and elevators
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3510, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.8/1.9 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.75
- Package Width: 18.25
- Package Height: 12.62
- Package Weight: 39.00
Product info last updated on January 27, 2026 4:57pm UTC
Category: Motors
