High Torque Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 1, 730 Nameplate RPM, 213T Frame MPN:6K130
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1854487
High Torque Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 1, 730 Nameplate RPM, 213T Frame

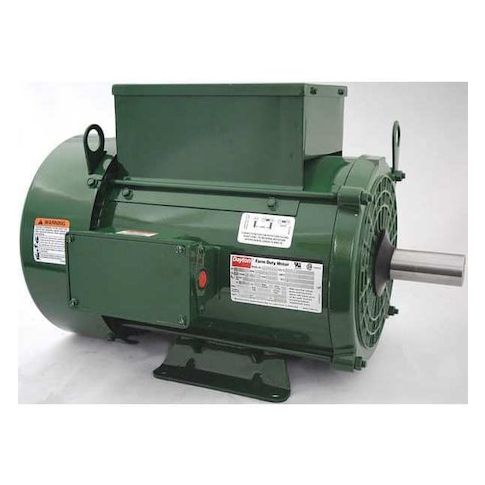

This high-torque farm duty motor from Dayton is designed for demanding agricultural applications, featuring a capacitor-start/run design for efficient operation and a totally enclosed fan-cooled enclosure for optimal heat dissipation. With a 5 HP rating and 1,730 nameplate RPM, it provides reliable power for a variety of tasks, including irrigation systems, pumps, and other heavy-duty equipment. Its rugged construction and continuous duty cycle make it ideal for use in harsh environments, while its compact size and lightweight design facilitate easy installation and maintenance. Suitable for use in a range of agricultural settings, from small farms to large commercial operations.
Top product features:
- Totally Enclosed Fan Cooled design for improved reliability and reduced maintenance
- Motor Shaft Rotation in both CW and CCW directions for increased flexibility and adaptability
- Motor Design with Capacitor-Start/Run technology for efficient and reliable operation
Top product applications:
- Pumps
- Fans
- Conveyors
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 1,730 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 23.0 A, 213T Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Finish Green
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.80
- Package Width: 17.50
- Package Height: 15.00
- Package Weight: 122.00
