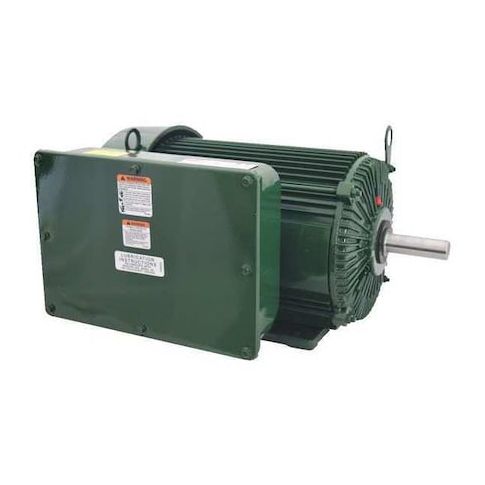

Extra High Torque Farm Duty Motor, Capacitor-Start/Run, 7 1/2 HP, 230V AC, 1, 715 Nameplate RPM MPN:6K884
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1854469
Extra High Torque Farm Duty Motor, Capacitor-Start/Run, 7 1/2 HP, 230V AC, 1, 715 Nameplate RPM
This Extra High Torque Farm Duty Motor from Dayton is designed for demanding agricultural applications, offering 7 1/2 HP and 1,715 Nameplate RPM for efficient power and speed. Its capacitor-start/run design ensures reliable operation in single-phase systems, while a 1.15 service factor and manual thermal protection provide added durability. The motor's totally enclosed fan-cooled design and rigid base mounting make it suitable for continuous duty cycles in harsh environments. Ideal for applications such as irrigation systems, grain handling, and farm equipment, this motor delivers high torque and reliability to keep your operations running smoothly.
Top product features:
- High torque output for heavy-duty applications
- Totally Enclosed Fan Cooled design for improved heat dissipation
- Capacitor-Start/Run motor design for efficient operation and reduced wear
Top product applications:
- Pumps and irrigation systems for large agricultural operations
- Well drilling and pumping equipment
- Industrial laundry and textile processing machinery
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 7 1/2 hp HP, Nameplate RPM 1,715 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 30.8 A, 215TZ Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.00
- Package Width: 17.80
- Package Height: 15.30
- Package Weight: 148.00
Product info last updated on January 31, 2026 3:34am UTC
Category: Motors
