Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:6K832
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1831907

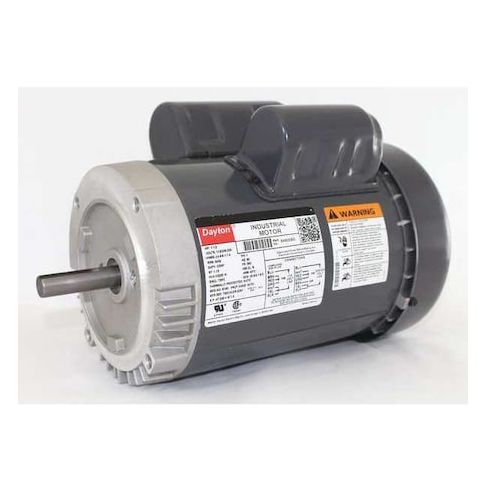

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame
This 1.5 HP single-phase motor is designed for general-purpose applications and features a capacitor-start/run design for efficient operation. It's suitable for use in a variety of settings, including industrial and commercial environments, and is available for use at 115/208-230V AC. The motor's totally enclosed fan-cooled design provides reliable performance in harsh conditions, while its continuous duty cycle and motor thermal protection ensure long-lasting operation. Ideal for applications such as pumps, fans, and conveyor systems, this motor offers a cost-effective solution for meeting your power needs.
Top product features:
- Totally Enclosed Fan Cooled design provides improved motor protection and reduced noise levels.
- Capacitor-Start/Run motor design allows for efficient starting and running of the motor.
- Continuous duty cycle operation enables the motor to run for extended periods without overheating.
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.6/8.1-7.4 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 13, 2026 8:14pm UTC
Category: Motors
