Capacitor-Start General Purpose Motor, 1/2 hp, 1/7 hp HP, 115V AC Voltage, 56 Frame MPN:5FTR9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1826806

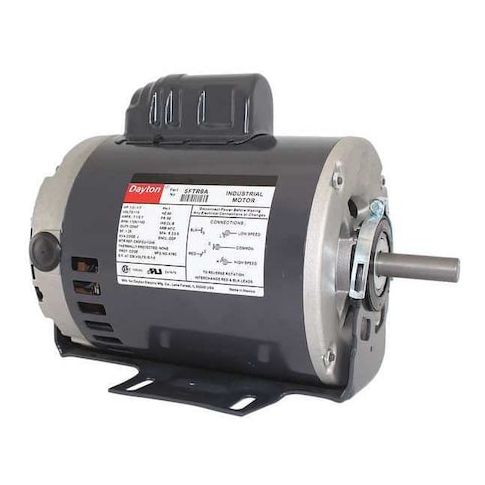

Capacitor-Start General Purpose Motor, 1/2 hp, 1/7 hp HP, 115V AC Voltage, 56 Frame
This 1/2 horsepower, single-phase capacitor-start motor from Dayton is a reliable and efficient solution for various applications. Suitable for use in commercial and industrial settings, it operates at 115V AC and 60Hz, with a maximum ambient temperature of 40°C. The motor features a 2-speed design, with a nameplate RPM of 1,725/1,140, and is equipped with a cradle base mounting system for flexibility. Its open drip-proof enclosure provides protection against dust and water, making it ideal for use in environments where exposure to moisture is a concern. Ideal for use in pumps, fans, and other machinery.
Top product features:
- Capacitor-start design for enhanced starting torque and efficiency
- Single-phase motor operation for straightforward installation and control
- Two-speed operation with a nameplate RPM of 1,725/1,140 RPM for adaptable performance
Top product applications:
- Industrial conveyor systems
- Pumps and compressors
- Fans and blowers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp, 1/7 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 7.1/3.7 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 25.00
Product info last updated on February 10, 2026 6:03pm UTC
Category: Motors
