Three-Phase General Purpose Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:194153.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1826596
Three-Phase General Purpose Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM

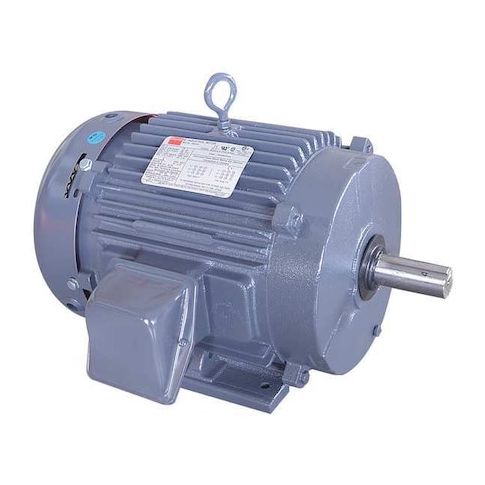

This 10 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. With a nameplate RPM of 1,770 and a voltage of 230/460V AC, it provides reliable and efficient power to machines and equipment. The motor's totally enclosed fan cooled design and cast iron frame ensure durability and long lifespan, while its ball bearings and high efficiency rating of 91.7% minimize maintenance and energy costs. Suitable for continuous duty, this motor is ideal for applications such as pumping, conveying, and power transmission, and meets CE, CSA, and UL standards.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation at 1,770 Nameplate RPM
Top product applications:
- Pumps and water treatment systems
- Conveyor systems and material handling equipment
- Industrial fans and ventilation systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1,770, Frame 215T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 25.8/12.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 18.50
- Package Height: 16.00
- Package Weight: 222.00
Product info last updated on January 23, 2026 6:52pm UTC
Category: Motors
