DC Motor, PM, TEFC, 1-1/2 HP, 1750rpm, 180VDC MPN:4Z379A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1818704

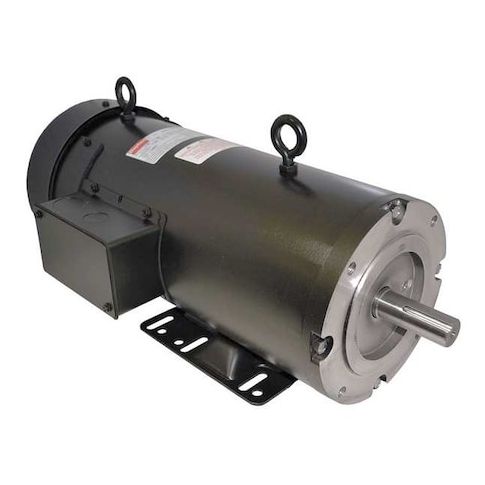

DC Motor, PM, TEFC, 1-1/2 HP, 1750rpm, 180VDC
The Dayton DC Motor, PM, TEFC, 1-1/2 HP, 1750rpm, 180VDC is a high-performance motor designed for continuous operation in a variety of applications. Its permanent magnet design provides efficient and reliable operation, while the totally enclosed fan-cooled (TEFC) enclosure keeps the motor cool and protected from the environment. This motor is ideal for use in industrial automation, robotics, and material handling systems, as well as in applications such as conveyor systems, pumps, and fans. With its high torque output and continuous duty cycle, this motor is a reliable choice for demanding industrial applications.
Top product features:
- Totally Enclosed Fan-Cooled design provides a safe and protected operating environment for the motor.
- Continuous duty cycle enables the motor to operate for extended periods without overheating.
- Ball bearings in the motor provide smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Low-speed conveyor systems
- Material handling equipment for warehouse automation
- Precision machinery for the semiconductor industry
DC Permanent Magnet Motor, Motor Design Permanent Magnet, 1 1/2 HP, Nameplate RPM 1,750 RPM, Voltage 180V DC, 7.5 A Full Load Amps, 143/5TC Frame, Full Load Torque 12 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 7/8 in, Motor Bearings Ball, Shaft Length 2 1/2 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 10.60
- Package Height: 11.90
- Package Weight: 69.00
Product info last updated on February 23, 2026 4:31am UTC
Category: Motors
