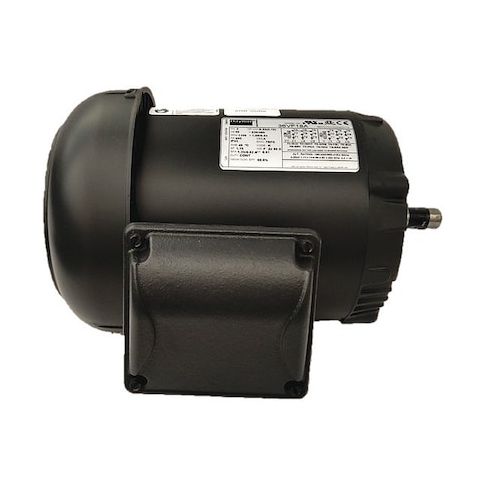

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1160 Nameplate RPM MPN:36VF18
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1811041
Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1160 Nameplate RPM
This 1/4 HP, three-phase general purpose motor from Dayton is designed for a wide range of applications including industrial machinery, pumps, and compressors. With a nameplate RPM of 1160 and a motor thermal protection of none, this motor is suitable for continuous duty operations in temperatures up to 40 degrees C. The totally enclosed fan cooled motor enclosure design and rigid base provide a durable and reliable performance. The motor's high efficiency of 68% and service factor of 1.15 make it an ideal choice for applications requiring high performance and reliability.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reduced heat buildup and improved safety
- Ball motor bearings for smooth and long-lasting operation
Top product applications:
- Industrial conveyor systems
- Pumps and water treatment plants
- Air handling systems for commercial buildings
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 1160, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.0/0.55 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 68 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.25
- Package Width: 11.00
- Package Height: 10.00
- Package Weight: 24.50
Product info last updated on March 11, 2026 11:26am UTC
Category: Motors
