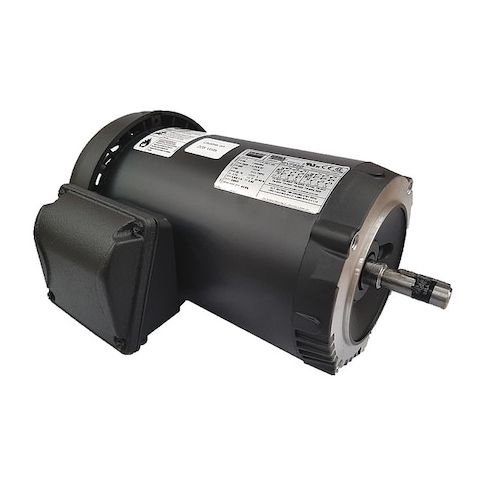

Three-Phase General Purpose Motor, 1 1/2 HP, 56C Frame, 230/460V AC Voltage, 3470 Nameplate RPM MPN:36VF65
Free Shipping
In Stock
This 1.5 HP three-phase general purpose motor from Dayton is designed for heavy-duty applications requiring continuous duty. With a nameplate RPM of 3470 and a frame size of 56C, it provides reliable performance in a compact package. Suitable for use in industrial settings, this motor features a totally enclosed fan cooled design, steel frame, and ball bearings for extended lifespan. Its high efficiency of 84% and service factor of 1.15 enable it to operate at high loads while minimizing energy consumption. Ideal for applications such as conveyor systems, pumps, and fans, this motor is a reliable choice for demanding industrial environments.
Top product features:
- Three-Phase AC Voltage Capability
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial conveyor systems
- Pumps and compressors
- Machine tools and manufacturing equipment
The DAYTON - 36VF65 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It effectively converts electrical energy into mechanical energy to operate various types of machinery, making it versatile across different sectors from manufacturing lines to HVAC systems.
Key Features of the DAYTON - 36VF65 General Purpose Motor:
- CC Number: The unique identifier CC029A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: This motor is designed for continuous operation within its specified duty cycle, which may vary based on specific usage conditions.
- Frame: The frame size is 56C which conforms to standard specifications for compatibility and interchangeability.
- Full Load Amps: When operating at full capacity, the motor is rated to draw a maximum current of 4.0/2.0 A
- it's important to match this with appropriate power supply requirements.
- Green Certification or Other Recognition: The NEMA Premium Rating signifies that the motor has been recognized for meeting certain environmental and energy efficiency standards.
- Inverter Rated: Yes - This means the motor is compatible with variable frequency drives, which can provide varying levels of speed and torque control depending on application needs.
- Motor Bearings: Equipped with ball bearings intended to minimize friction between moving parts, potentially contributing to smoother operation under various load conditions
- Motor Enclosure Design: Features a Totally Enclosed Fan Cooled design aimed at protecting internal components from external elements while aiding in heat dissipation
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.25
- Package Width: 11.25
- Package Height: 9.50
- Package Weight: 36.00
