Three-Phase General Purpose Motor, 1 1/2 HP, 143/5TC Frame, 230/460V AC Voltage, 3480 Nameplate RPM MPN:36VF66
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1810999

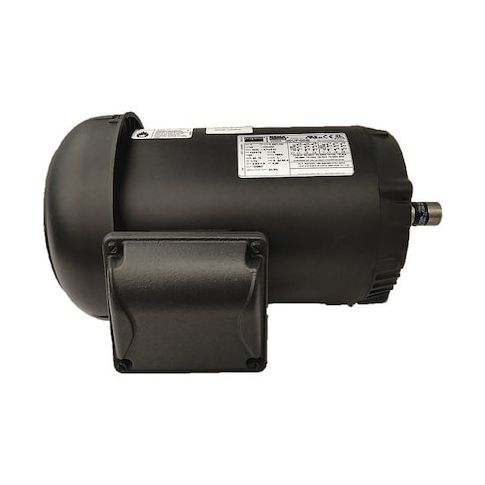

Three-Phase General Purpose Motor, 1 1/2 HP, 143/5TC Frame, 230/460V AC Voltage, 3480 Nameplate RPM
This 1.5 HP three-phase general purpose motor is designed for a wide range of applications requiring reliable and efficient power. With a totally enclosed fan cooled motor enclosure, it provides protection against dust and moisture in harsh environments. The motor's high efficiency and continuous duty rating make it suitable for applications such as pumps, fans, and conveyor systems. Its compact 143/5TC frame and 3480 RPM rating also make it a great option for space-constrained installations. With a service factor of 1.15 and ball bearings for smooth operation, this motor is a reliable choice for demanding industrial applications.
Top product features:
- Three-phase operation for efficient power delivery
- Totally enclosed fan cooled motor enclosure design for reliable operation in harsh environments
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial conveyor systems
- Pumps and water treatment plants
- Manufacturing machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3480, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.8/1.9 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.75
- Package Width: 18.75
- Package Height: 12.62
- Package Weight: 40.00
