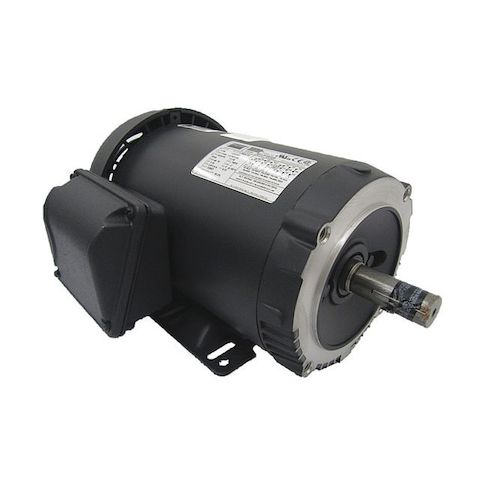

Three-Phase General Purpose Motor, 1 HP, 143/5TC Frame, 230/460V AC Voltage, 1, 145 Nameplate RPM MPN:36VF85
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1810965
Three-Phase General Purpose Motor, 1 HP, 143/5TC Frame, 230/460V AC Voltage, 1, 145 Nameplate RPM
This three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its 1 HP rating and 1,145 nameplate RPM make it suitable for applications requiring moderate power and speed. The motor's totally enclosed fan cooled design ensures reliable operation in harsh environments, while its 82.5% nominal efficiency minimizes energy consumption. The motor's rigid base and C-face mounting type make it easy to integrate into existing systems. Ideal for use in factories, warehouses, and other industrial settings, this motor provides a reliable and efficient solution for a variety of applications.
Top product features:
- Three-phase operation for efficient power delivery
- Totally enclosed fan cooled design for reliable operation in harsh environments
- Ball motor bearings for long-lasting and smooth operation
Top product applications:
- Pump applications
- Conveyor systems
- Fans and blowers
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,145, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.1/1.5 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, Continuous Duty, 1,101-1,200, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.25
- Package Width: 11.25
- Package Height: 9.50
- Package Weight: 42.00
