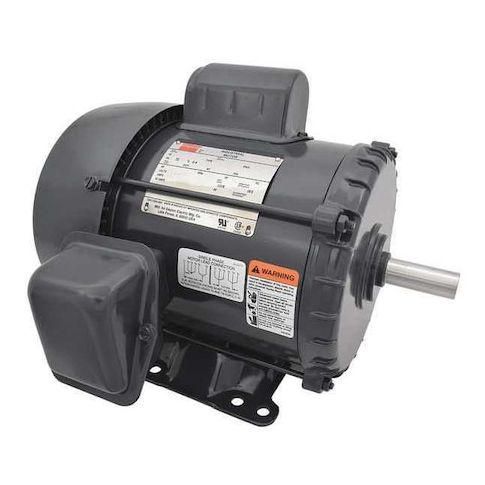

Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 182 Frame MPN:5K485
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1809674
Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 182 Frame
This 1 hp capacitor-start motor is designed for general purpose applications, providing reliable and efficient operation in a variety of settings. With a single-phase design and 115/230V AC voltage, it can be used in a range of environments. The motor's totally enclosed fan-cooled design and keyed shaft ensure safe and durable operation, while its continuous duty cycle and Class F insulation make it suitable for demanding applications. Ideal for use in industrial settings, such as manufacturing and assembly lines, or in commercial settings, such as restaurants and offices, this motor provides a reliable and efficient solution for powering equipment and machinery.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Single Phase, Motor Design Capacitor-Start for efficient and reliable operation
- Max. Ambient Temp. rating of 40 Degrees C for safe operation in high-temperature environments
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 13.8/6.9 A, 182 Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.50
- Package Height: 15.00
- Package Weight: 72.00
Product info last updated on February 9, 2026 9:53am UTC
Category: Motors
