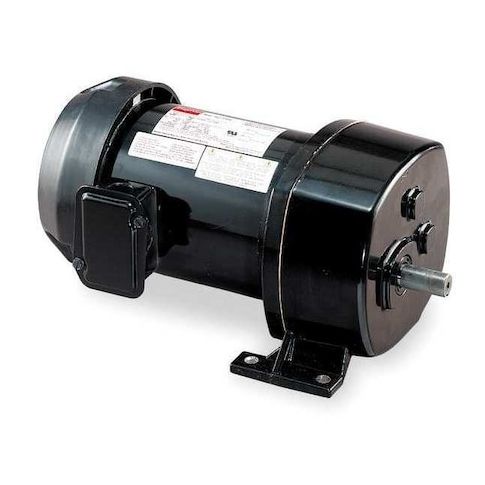

AC Gearmotor, 320 in-lb Max. Torque, 91 RPM Nameplate RPM, 115V AC Voltage, 1 Phase MPN:6K383
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1780642
AC Gearmotor, 320 in-lb Max. Torque, 91 RPM Nameplate RPM, 115V AC Voltage, 1 Phase
This reliable AC gearmotor from Dayton delivers 320 in-lb of maximum torque and a consistent 91 RPM nameplate speed, making it ideal for applications requiring precise and controlled motion. Suitable for use in a variety of settings, including industrial, commercial, and residential environments, this motor is perfect for tasks such as conveying, positioning, and lifting. Its totally enclosed fan-cooled design ensures efficient operation and long lifespan, while its continuous duty class and in-lb torque rating make it suitable for demanding applications. The motor's compact size and parallel shaft orientation provide flexibility in design and installation.
Top product features:
- Totally Enclosed Fan-Cooled motor enclosure provides a safe and reliable operation in harsh environments.
- 19:1 gear ratio allows for high torque output at low RPM, making it suitable for applications requiring precise control.
- Continuous duty motor operation enables long-term, uninterrupted performance.
Top product applications:
- Automotive lift systems
- Pumps and compressors
- Conveyor systems
AC Gearmotor, Number of Output Shafts 1, Motor Type Split-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 91 RPM, Maximum Torque 320 in-lb, Overhung Load Capacity 325 lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 19:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class B, Motor Duty Class Continuous, AGMA Gear Class Class 9
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.40
- Package Width: 9.50
- Package Height: 8.80
- Package Weight: 29.35
Product info last updated on February 23, 2026 11:00pm UTC
Category: Motors
