Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 145TC Frame MPN:4K812
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1762625

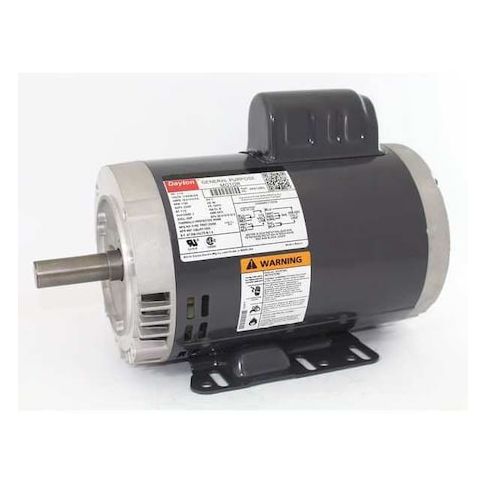

Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 145TC Frame
The Dayton Capacitor-Start General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/208-230V AC environments, this motor is ideal for industrial settings where continuous operation is required. With a 1.725 RPM nameplate speed and 19.2/10-9.6 A full load amps, it provides consistent performance and can withstand demanding conditions. Perfect for use in manufacturing, material handling, and other heavy-duty applications, this motor offers a cost-effective and durable solution for businesses looking to increase productivity and reduce downtime. Its compact 145TC frame design also makes it easy to integrate into existing systems.
Top product features:
- Capacitor-start design for improved motor efficiency and reliability
- Single-phase operation for simple installation and control
- Open drip-proof enclosure design for protection against dust and water spray
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 19.2/10-9.6 A, 145TC Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 40.00
Product info last updated on February 1, 2026 8:14am UTC
Category: Motors
