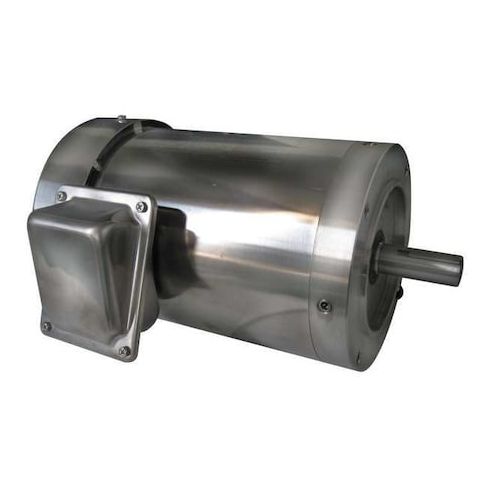

Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 1750 rpm MPN:6WY59
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1746866
Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 1750 rpm
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.0/2.0 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.10
- Package Width: 11.40
- Package Height: 10.20
- Package Weight: 45.60
Product info last updated on March 5, 2026 6:34pm UTC
Category: Motors
