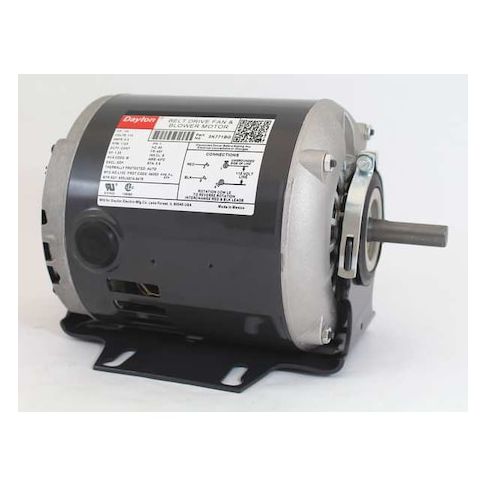

Belt Drive Motor, 1 Speed, Open Dripproof, Cradle Base Mount, 1/4 HP, 1, 725 Nameplate RPM, B MPN:3K771

The DAYTON - 3K771 is a Belt Drive Motor, a power transmission device that uses a belt to transfer rotational motion from one shaft to another. This motor is used in various industrial applications for its efficiency and versatility, providing smooth and controlled power delivery. It's an essential component in many machinery systems across different industries.


Key Features:


• High horsepower (HP:1/4) indicating greater capacity to drive pneumatic tools efficiently.

• Maximum operating speed as specified by the manufacturer is Nameplate RPM:1725

• Voltage requirement is 115V AC for optimal operation

• Single Phase power supply suited for residential or light commercial use

• Motor Service Factor:1.35 provides extra power when needed for demanding applications.

• Motor Enclosure Design : Open Dripproof provides better cooling but less protection against dust & moisture

• Cradle Base Motor Mounting Type secures the motor onto a compressor effectively

• Ball type Motor Bearings reduce friction between moving parts enhancing operational efficiency

• Built-in Auto Thermal Protection prevents the motor from overheating by automatically shutting it down when excessive heat is detected.

• Able operate optimally up-to Max. Ambient Temp.:104 Degrees F

• Duty Cycle : Continuous allows the motor to run non-stop without overheating in high-demand industrial settings

• UL Recognized (E37403) and CSA Certified (258501) standards ensure quality, safety & efficiency
