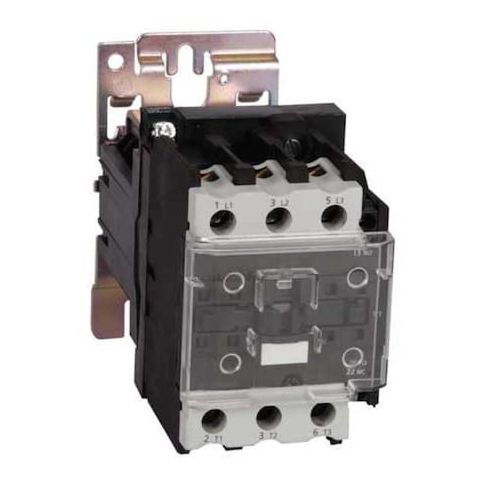

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing MPN:6ECD8
Free Shipping
In Stock
The DAYTON IEC Magnetic Contactor is a reliable and efficient switching device designed for various industrial applications. Suitable for use in control panels, it provides 3-pole, non-reversing operation and is compatible with 24V DC coil voltages. With auxiliary contacts for signaling or control, this contactor is ideal for use in motor control, conveyor systems, and other applications requiring precise switching performance. Its compact design and standard dimensions ensure easy integration into existing control systems. Meeting CSA and UL Listed standards, this contactor offers a reliable solution for a wide range of industrial applications.
Top product features:
- The DAYTON IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switching device.
- It is configured with auxiliary contacts (1NO/1NC, 1NC/1NO) for signaling or control.
- It operates at 50/60 Hz, designed to meet standard dimensions for control panel compatibility.
Top product applications:
- Motor Control Center
- Industrial Control Panels
- Power Distribution Units
The DAYTON IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switching device rated for operation within the specified voltage and frequency ranges. Compatible with specified coil voltages
- actual switching performance may vary based on application conditions. It is configured with auxiliary contacts (1NO/1NC, 1NC/1NO) for signaling or control. Does not include built-in surge suppression
- external measures may be necessary for transient protection. Does not have an enclosure rating
- suitable for use in appropriate environmental conditions as specified. It operates at 50/60 Hz. Designed to meet standard dimensions for control panel compatibility, but installation should follow applicable guidelines.
- Poles: 3
- - Coil Voltage: 24 V DC
- - Action: Non-Reversing
- - Reversing Capability: Non-Reversing
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Auxiliary Contact Form: 1NC/1NO
- - Includes Auxiliary Contacts: Yes
- - Dimensions (Depth/Height/Width): 7.12 in / 3.34 in / 3.34 in
- - Frequency: 50/60 Hz
- - Full Load Amps: Inductive 80 A
- Resistive 110 A
- - Full Load Current: Inductive 80 A
- Resistive 110 A
- - Horsepower Ratings (HP): 7.5 hp @ 120V
- 15 hp @ 230V
- 15 hp @ 240V
- 20 hp @ 208V (3P)
- 25 hp @ 240V (3P)
- 60 hp @ 480V (3P)
- 60 hp @ 575V (3P)
- 60 hp @ 600V (3P)
- - Standards: CSA, UL Listed
- - Enclosure: Does not have an enclosure rating
- suitable for use in appropriate environmental conditions as specified
- - Embedded Surge Suppressor: Does not include built-in surge suppression
- external measures may be necessary for transient protection
- - Item: IEC Magnetic Contactor
