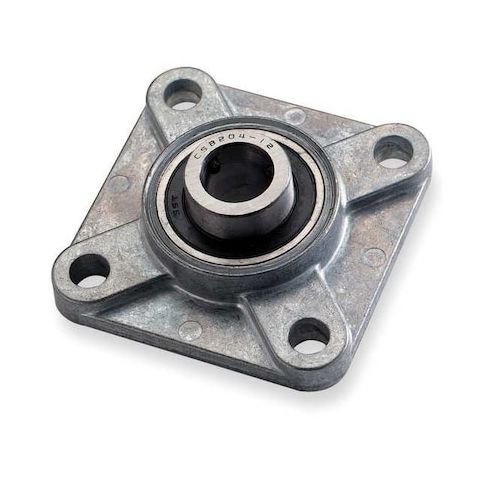

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Zinc Die Cast, Set Screw MPN:1F546
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1680095
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Zinc Die Cast, Set Screw
The Dayton 1F546 Flange Mount Bearing is a reliable and versatile solution for various applications. This 4-bolt flange bearing features a radial ball insert made of alloy steel, ensuring smooth operation and long-lasting performance. With a maximum speed of 3,500 RPM and temperature range of -30 to 200 degrees F, it can withstand demanding conditions. Suitable for use in industrial machinery, equipment, and automotive applications, this bearing provides a stable and secure fit, reducing vibration and noise. Its compact design and ease of installation make it an ideal choice for a wide range of industries, including manufacturing, aerospace, and heavy machinery.
Top product features:
- Radial ball bearing design for smooth rotation
- Double sealed closure for protection against contaminants
- Zinc die cast housing for durability and resistance to corrosion
Top product applications:
- Pump shaft support
- Conveyor belt drive
- Gearbox shaft support
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Zinc Die Cast, Housing Type Square, Lubricant Material NLGI #2 Equivalent, Maximum Speed 3,500 RPM, Maximum Temperature 200 Degrees F, Minimum Temperature -30 Degrees F, Mount Hole Center-to-Center Height 2 3/4 in, Number of Mount Holes 4, Overall Height 3 3/4 in, Overall Length 3 3/4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 1.50
- Package Height: 3.70
- Package Weight: 1.20
Product info last updated on February 24, 2026 10:48am UTC
Category: Bearings, V-belts and Power Transmission Equipment
