Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1760 Nameplate RPM MPN:194145.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1667197

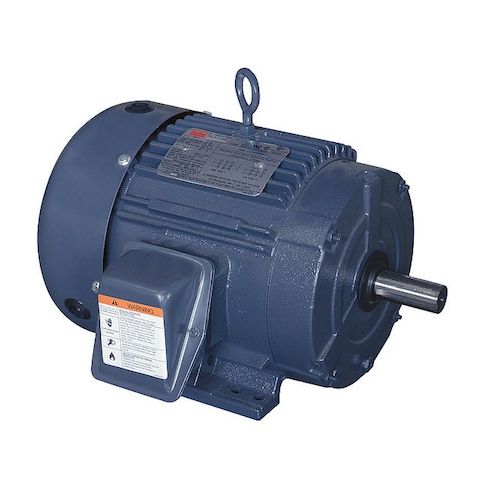

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1760 Nameplate RPM
This 3 HP three-phase general purpose motor from Dayton is designed for demanding industrial applications, offering reliable performance and efficiency. With a nameplate RPM of 1760 and a frame size of 182T, it's suitable for a wide range of uses, including conveyor systems, pumps, and fans. The motor's totally enclosed fan-cooled design and cast iron frame ensure durability and protection from the elements. Its high efficiency rating of 89.5% and continuous duty capability make it an ideal choice for applications requiring sustained operation. Suitable for use in a variety of industries, including manufacturing and processing.
Top product features:
- Three-phase design for efficient operation in various applications
- Totally enclosed fan cooled motor enclosure for improved heat dissipation and reliability
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Conveyor systems
- Pumps and blowers
- Industrial machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1760, Frame 182T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.6/3.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 15.00
- Package Height: 13.50
- Package Weight: 97.00
