Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 143T Frame MPN:6K827
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1658133

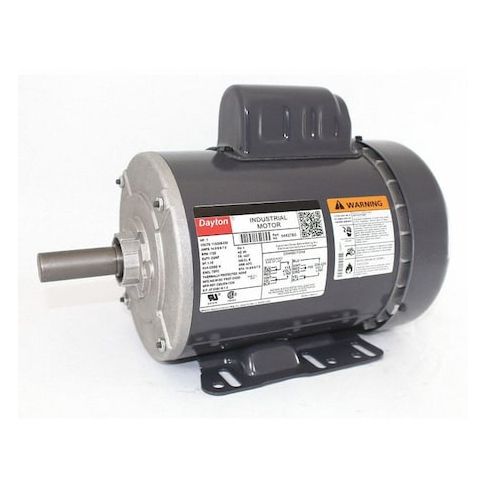

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 143T Frame
The Dayton Capacitor-Start General Purpose Motor is a reliable and efficient solution for a wide range of applications. With a 1 horsepower rating and 1,725 RPM, this motor is ideal for use in industrial and commercial settings where continuous operation is required. The totally enclosed fan-cooled design ensures reliable operation in harsh environments, while the single-phase design makes installation and maintenance easy. Suitable for applications such as conveyor systems, pumps, and fans, this motor provides a cost-effective and durable solution for businesses looking to increase productivity and reduce downtime. Its compact design makes it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Usable at 208V for flexibility in voltage selection
- Continuous duty cycle for reliable operation under heavy loads
Top product applications:
- Air Compressor
- Pump
- Fan
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.0/6.9-7.0 A, 143T Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
