Capacitor-Start General Purpose Motor, 1/4 hp HP, 48Z Frame, 115/230V AC Voltage MPN:5PHA0A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1647895
Capacitor-Start General Purpose Motor, 1/4 hp HP, 48Z Frame, 115/230V AC Voltage

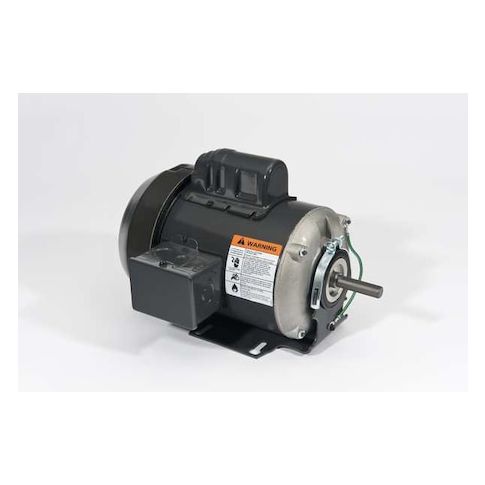

This 1/4 hp Capacitor-Start General Purpose Motor from Dayton is a reliable and efficient solution for various applications. Suitable for use in a wide range of industries, it offers continuous operation and can withstand high temperatures up to 40°C. Its totally enclosed fan-cooled design ensures minimal maintenance and optimal performance. The motor's compact 48Z frame and cradle base mounting make it easy to integrate into existing systems. Ideal for use in manufacturing, laboratory, and commercial settings, this motor provides a cost-effective and durable solution for applications requiring 115/230V AC voltage.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and durable motor environment.
- Single Phase, Capacitor-Start motor design allows for efficient operation.
- Continuous duty cycle capability enables long-term, uninterrupted operation.
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.2/2.6 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Shaft Design Flat
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 25.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on March 3, 2026 2:24am UTC
Category: Motors
