Three-Phase General Purpose Motor, 7 1/2 HP, 254T Frame, 230/460V AC Voltage, 1165 Nameplate RPM

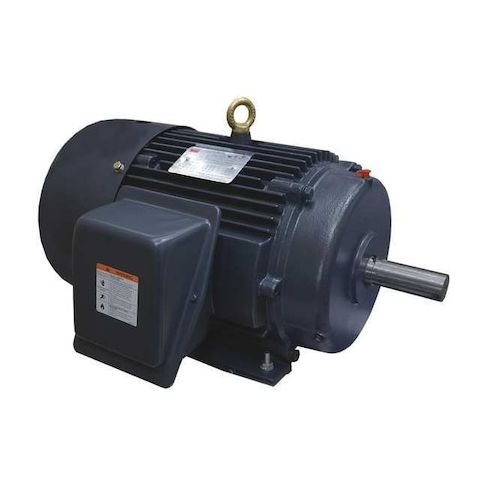

This Dayton 7 1/2 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. With its totally enclosed fan cooled motor enclosure, it provides reliable operation in harsh environments. The motor's 91% nominal efficiency and 1.15 service factor make it suitable for continuous duty applications. It's also equipped with ball bearings and a cast iron frame for added durability. Suitable for use in factories, warehouses, and other high-volume operations, this motor offers a cost-effective solution for powering machinery and equipment.
Top product features:
- Three-Phase Operation
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial automation systems
- Material handling equipment
- Pumps and compressors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1165, Frame 254T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 20.9/10.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 21.50
- Package Height: 18.00
- Package Weight: 309.00
