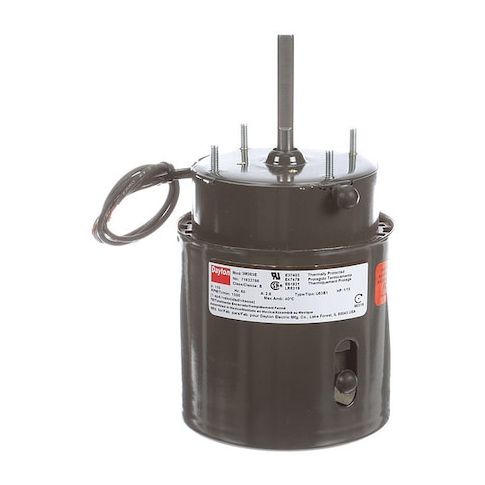

HVAC Motor, 1/15 HP, 1550 rpm, 115V, 3.3 MPN:71632766M
HVAC Motor, 1/15 HP, 1550 rpm, 115V, 3.3
This compact 1/15 HP HVAC motor from Dayton is designed for efficient and reliable operation in a variety of applications. With a single-phase, shaded pole design and a maximum ambient temperature of 40°C, it can handle continuous duty cycles in environments where temperature fluctuations are minimal. Suitable for use in residential and light commercial settings, this motor is ideal for applications such as fans, blowers, and other HVAC equipment. Its compact size and low power consumption make it an attractive option for space-conscious installations, providing a reliable and energy-efficient solution for a range of HVAC needs.
Top product features:
- Single Phase operation
- Shaded Pole motor design
- Totally Enclosed Fan Cooled enclosure
Top product applications:
- Air Handling Units
- Commercial Refrigeration Equipment
- Packaged Terminal Air Conditioners
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/15 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 2.3 A Full Load Amps, 3.3 Frame, Output Watts 49 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 8.40
- Package Height: 4.60
- Package Weight: 5.90
Product info last updated on January 31, 2026 9:25pm UTC
Category: Motors
