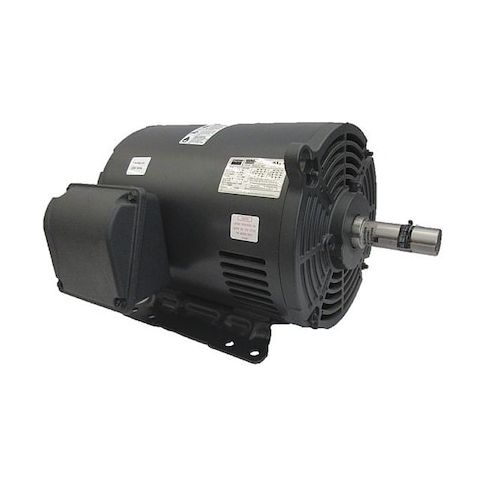

Three-Phase General Purpose Motor, 15 HP, 254/6T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:4GZC4
Free Shipping
In Stock
This 15 HP three-phase general purpose motor from Dayton is designed for heavy-duty applications, offering a high level of efficiency and reliability. With a nameplate RPM of 1,770 and a voltage range of 230/460V AC, this motor is suitable for a wide range of industrial uses, including manufacturing, processing, and material handling. Its open drip-proof motor enclosure design and rigid base mounting type ensure easy installation and maintenance. Suitable for continuous duty, this motor is ideal for applications requiring high power and efficiency, such as conveyor systems, pumps, and fans.
Top product features:
- Three-Phase operation allows for efficient power distribution and utilization.
- Open Drip Proof Motor Enclosure Design provides protection from dust and water spray.
- Ball Motor Bearings ensure smooth and quiet operation.
Top product applications:
- Pumps
- Fans
- Compressors
The DAYTON - 4GZC4 is a General Purpose Motor that falls under the category of 3-Phase AC Motors. This type of motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It converts electrical energy into mechanical energy to operate different types of machinery, making it versatile across various sectors from manufacturing lines to HVAC systems.
Key Features of the DAYTON - 4GZC4 General Purpose Motor:
- CC Number: The unique identifier CC029A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: With a continuous duty cycle, this motor is designed for continuous operation in industrial applications.
- Frame: Its frame size (254/6T) conforms to standard specifications for compatibility and interchangeability.
- Full Load Amps: Operating at full capacity, it draws a maximum current of 36.4/18.2 A which are used for determining power supply requirements.
- Green Certification or Other Recognition: NEMA Premium Rated indicates that this motor meets certain environmental and energy efficiency standards.
- Inverter Rated: Yes - compatible with a variable frequency drive, which may allow for adjustments of speed and torque
- Horsepower (HP): With an output power rating of 15 HP, it is suitable for use in various industrial applications
- Nominal Efficiency: Under normal operating conditions, its nominal efficiency is rated at 93%
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.50
- Package Width: 29.50
- Package Height: 18.20
- Package Weight: 241.00
