Washdown Motor, 3 Ph, TENV, 1/2 HP, 1155 rpm MPN:6WY51
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1624375

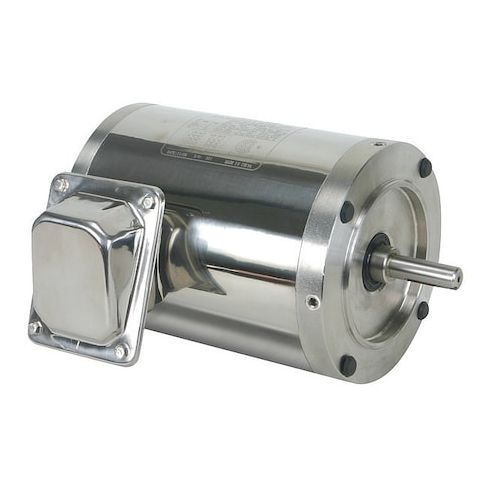

Washdown Motor, 3 Ph, TENV, 1/2 HP, 1155 rpm
This 1/2 HP three-phase washdown motor from Dayton is designed for heavy-duty use in harsh environments. With a nameplate RPM of 1,155 and a voltage range of 208-230/460V AC, it can handle demanding tasks in applications such as food processing, pharmaceutical manufacturing, and chemical handling. Its totally enclosed non-ventilated (TENV) design and Class F insulation ensure reliable operation in extreme temperatures and moisture conditions. The motor's continuous duty cycle and NEMA Design B rating make it suitable for 24/7 use, providing a cost-effective solution for applications requiring high performance and durability.
Top product features:
- Three-Phase Design for Efficient Power Distribution
- Totally Enclosed Non-Ventilated (TENV) Enclosure for Protection from Environmental Hazards
- Continuous Duty Cycle for Reliable Operation in Demanding Applications
Top product applications:
- Food Processing
- Water Treatment Plants
- Chemical Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,155 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.9-1.8/0.9 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.60
- Package Width: 11.30
- Package Height: 10.20
- Package Weight: 33.90
Product info last updated on February 4, 2026 9:22am UTC
Category: Motors
