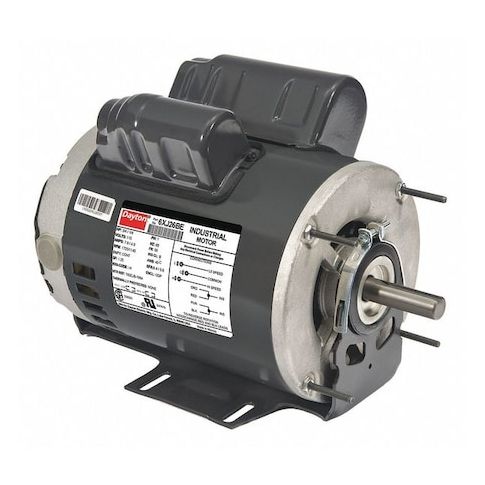

Capacitor-Start/Run General Purpose Motor, 1/4 hp, 3/4 hp HP, 115V AC Voltage, 56 Frame
This 1/4-3/4 hp capacitor-start/run general purpose motor from Dayton is designed for a wide range of applications requiring single-phase power. With its 115V AC voltage and 60 Hz operation, this motor is suitable for use in commercial and industrial settings. Its open drip-proof enclosure and cradle base mounting make it easy to install and maintain. The motor's high service factor and continuous duty cycle ensure reliable operation even in demanding conditions. Suitable for applications such as fans, pumps, and conveyor systems, this motor offers a cost-effective solution for many industrial and commercial needs.
Top product features:
- Capacitor-start/run design for improved efficiency and reliability
- Single-phase operation for use in residential and commercial applications
- Open drip-proof enclosure design for protection against dust and water spray
Top product applications:
- Industrial laundry equipment
- Pumps and water treatment systems
- Fans and blowers for commercial or industrial use
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp, 3/4 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 7.9/4.9 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Keyed, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 28.25
