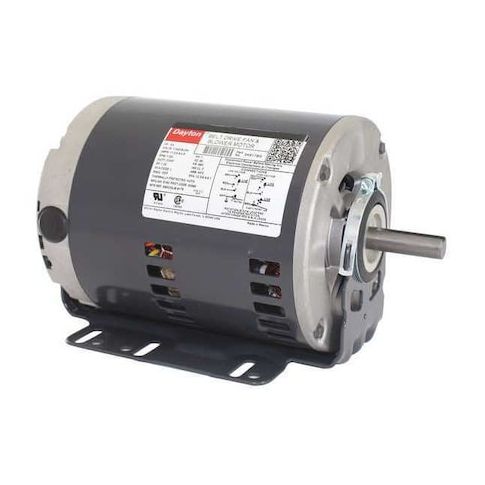

Split-Phase Belt Drive Motor, 3/4 HP, 56H Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM MPN:3K617BG
Free Shipping
In Stock
The Dayton 3K617BG is a reliable and efficient Split-Phase Belt Drive Motor designed for demanding HVAC/R applications and belt drive fan/blower use. Its 3/4 HP power and 1,725 Nameplate RPM make it an ideal choice for various industrial applications, including pneumatic tool driving and high-demand settings. With features like automatic thermal protection, ball bearings, and a cradle base mounting type, this motor ensures smooth power delivery, reduced friction, and secure installation. Its CSA Certified and UL Recognized standards compliance ensures quality and safety adherence, making it a versatile and trustworthy addition to many machinery systems.
Top product features:
- A horsepower (HP) of 3/4 for efficient driving of pneumatic tools.
- An RPM range between 1,701-1,800 suitable for diverse industrial applications.
- Open Dripproof motor enclosure design providing protection while allowing better cooling.
Top product applications:
- HVAC/R applications
- Belt drive fan/blower use
- Industrial machinery systems
The DAYTON - 3K617BG is a Belt Drive Motor, a power transmission device designed for HVAC/R applications and belt drive fan/blower use. This tool is widely used in various industrial applications due to its efficiency and versatility. It provides smooth and controlled power delivery, making it an essential component in many machinery systems across different industries.
Key features of the DAYTON - 3K617BG include:
• A horsepower (HP) of 3/4 for efficient driving of pneumatic tools.
• An RPM range between 1,701-1,800 suitable for diverse industrial applications.
• Maximum ambient temperature tolerance up to 104 Degrees F ensuring optimal function in varying settings.
• Open Dripproof motor enclosure design providing protection while allowing better cooling.
• Cradle Base motor mounting type offering secure installation onto compressors.
• All Angle motor mounting position enabling versatile usage orientation options.
• Ball motor bearings for reduced friction and enhanced operational efficiency.
• Auto Motor Thermal Protection preventing overheating by automatic shutdown when excessive heat is detected.
• Nominal Efficiency: 65.9 % demonstrating filtration ability.
• Duty Cycle: Continuous allowing non-stop operation for high-demand settings.
• CSA Certified (258501), UL Recognized (E37403) standards compliance ensuring quality and safety adherence.
• Motor Service Factor: 1.25 indicating over-performance capacity without overheating risk.
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 27.00
