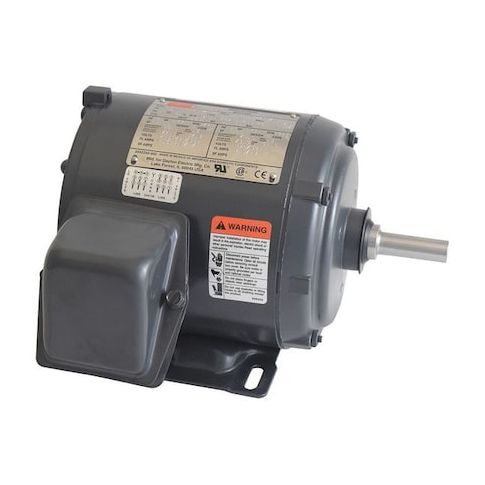

Three-Phase General Purpose Motor, 1/3 HP, 56 Frame, 208-230/460V AC Voltage, 1765 Nameplate RPM MPN:3N694
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1614094
Three-Phase General Purpose Motor, 1/3 HP, 56 Frame, 208-230/460V AC Voltage, 1765 Nameplate RPM
This 1/3 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial settings. With a nameplate RPM of 1765 and a high efficiency of 72%, this motor provides reliable and efficient operation. Its totally enclosed non-ventilated design and steel frame ensure durability and protection from harsh environments. The motor's rigid base mounting type and ball bearings provide stable and long-lasting performance. Suitable for continuous duty, this motor is ideal for applications such as pumps, fans, and conveyor systems, offering a cost-effective solution for businesses and industries.
Top product features:
- Totally Enclosed Non-Ventilated Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pumps and Compressors
- Fans and Blowers
- Conveyor Systems
General Purpose Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1/3 HP, Nameplate RPM 1765, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.4-1.5/0.70 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 81.1 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.10
- Package Width: 9.90
- Package Height: 9.90
- Package Weight: 18.00
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on February 7, 2026 4:17pm UTC
Category: Motors
