Washdown Motor, 3 Ph, TEFC, 15 HP, 3450 rpm

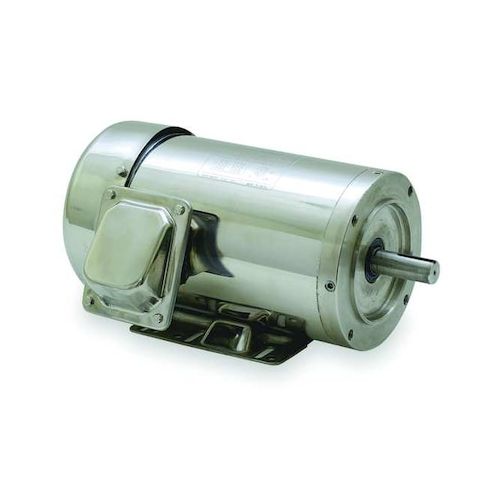

This 15 HP three-phase TEFC washdown motor from Dayton is designed for harsh environments and continuous use. It operates at 3450 rpm and is suitable for applications in food processing, pharmaceutical, and chemical industries. The motor's totally enclosed fan-cooled design and Class F insulation ensure reliable performance in temperatures up to 40°C. With a service factor of 1.15, it can handle demanding loads and provide efficient power conversion. Its compact size and lightweight design make it easy to integrate into existing systems, while its CW/CCW rotation allows for flexible installation options. Ideal for applications requiring high torque and reliability.
Top product features:
- Totally Enclosed Fan Cooled design for protection from dust and liquids
- Three-Phase motor design for high power output
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Water Treatment Plant
- Food Processing Plant
- Pharmaceutical Manufacturing Facility
Washdown Motor, Three Phase, Motor Design Three-Phase, 15 hp HP, Nameplate RPM 3,540 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 37.0/18.5 A, 254TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.20
- Package Width: 18.80
- Package Height: 18.00
- Package Weight: 260.00
