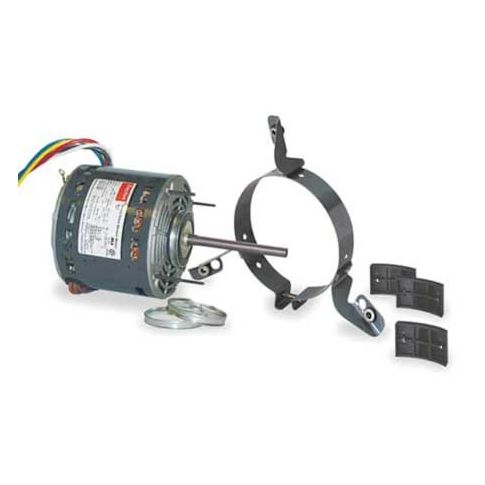

Motor, PSC, 1/4hp, 1075/3, 208-230, Ring/Stud MPN:7E648
Motor, PSC, 1/4hp, 1075/3, 208-230, Ring/Stud
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, 1.50 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type T-Flex, Motor Mounting Position All Angle, Shaft Length 4 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 162.50
- Package Width: 84.50
- Package Height: 78.00
- Package Weight: 140.40
Product info last updated on February 5, 2026 7:14am UTC
Category: Motors
