Three-Phase General Purpose Motor, 5 HP, 213/5 Frame, 230/460V AC Voltage, 3485 Nameplate RPM MPN:2N949
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1588964

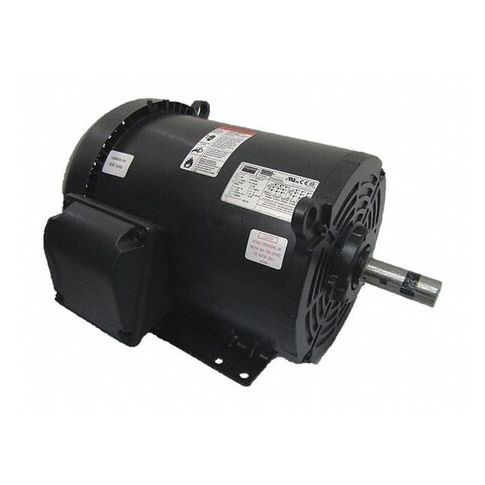

Three-Phase General Purpose Motor, 5 HP, 213/5 Frame, 230/460V AC Voltage, 3485 Nameplate RPM
This three-phase general purpose motor from Dayton is a reliable and efficient solution for various industrial applications. Its 5 HP rating and 230/460V AC voltage make it suitable for a wide range of uses, including pumping systems, conveyor belts, and material handling equipment. The motor's totally enclosed fan cooled design ensures quiet operation and long lifespan, while its ball bearings provide smooth and durable performance. With a service factor of 1.15 and a nominal efficiency of 88.5 percent, this motor offers high performance and energy efficiency in continuous duty applications.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reduced noise and increased durability
- Ball motor bearings for smooth and long-lasting operation
Top product applications:
- Pumps and compressors
- Fans and blowers
- Conveyors and material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3485, Frame 213/5, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 12.4/6.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 18.00
- Package Height: 16.00
- Package Weight: 138.00
Product info last updated on February 14, 2026 7:55am UTC
Category: Motors
