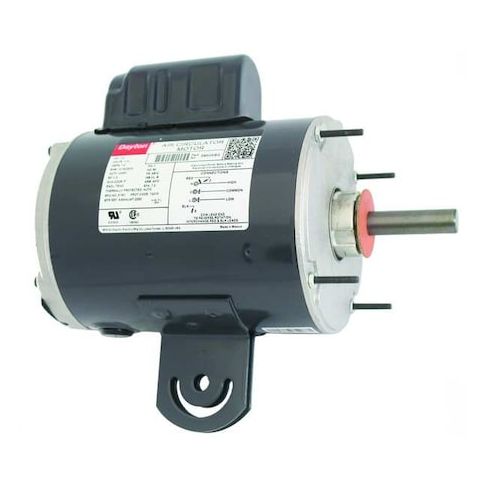

Pedestal Fan Motor, 1/2 HP, 1, 075 Nameplate RPM, 115V AC, 48YZ Frame, 7.2 A Full Load Amps MPN:3M505
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1582366
Pedestal Fan Motor, 1/2 HP, 1, 075 Nameplate RPM, 115V AC, 48YZ Frame, 7.2 A Full Load Amps
This 1/2 HP pedestal fan motor from Dayton is a reliable and efficient solution for your cooling needs. With a nameplate RPM of 1,075 and 2 speeds, it provides consistent and quiet operation. Suitable for a variety of applications, including residential and commercial use, this motor is designed for continuous duty cycles in temperatures up to 40°C. Its totally enclosed air-over design and auto thermal protection ensure long-lasting performance and protection. The motor's compact size and horizontal mounting position make it easy to integrate into your existing fan system, providing a cost-effective solution for cooling large spaces.
Top product features:
- Permanent Split Capacitor motor design
- Totally Enclosed Air-Over motor enclosure design
- Continuous duty cycle operation
Top product applications:
- Residential Pedestal Fans
- Commercial Pedestal Fans
- Industrial Ventilation Systems
Pedestal Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 2, Voltage 115V AC, 7.2 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Horizontal, Shaft Length 2 1/2 in, Shaft Dia. 5/8 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.40
- Package Width: 11.75
- Package Height: 11.75
- Package Weight: 22.90
Product info last updated on February 26, 2026 10:06pm UTC
Category: Motors
