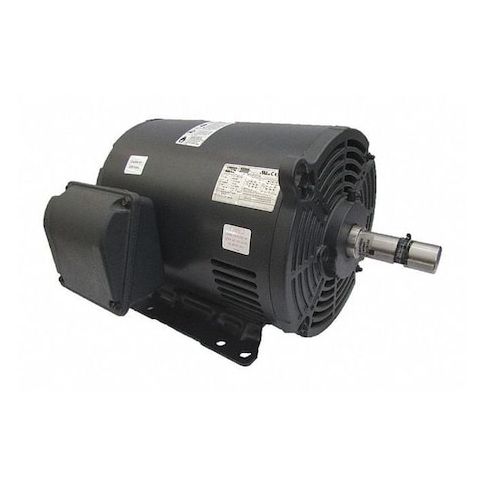

Three-Phase General Purpose Motor, 10 HP, 254/6T Frame, 230/460V AC Voltage, 1180 Nameplate RPM MPN:36VF07
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1578711
Three-Phase General Purpose Motor, 10 HP, 254/6T Frame, 230/460V AC Voltage, 1180 Nameplate RPM
This 10 HP three-phase general purpose motor from Dayton is designed for heavy-duty applications, offering a high level of efficiency and reliability. Suitable for use in a variety of industrial settings, it features a rigid base mounting design and ball bearings for smooth operation. The motor's open drip-proof enclosure protects against dust and water ingress, making it ideal for use in harsh environments. With a high service factor and continuous duty rating, this motor is perfect for applications such as conveyor systems, pumps, and fans, providing a reliable and efficient source of power.
Top product features:
- Three-phase operation for efficient power distribution
- Ball bearings for smooth and long-lasting motor operation
- Continuous duty capability for reliable performance in demanding applications
Top product applications:
- Industrial conveyor systems
- Manufacturing machinery
- Material handling equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 10 HP, Nameplate RPM 1180, Frame 254/6T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 27.8/13.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1,101-1,200, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.20
- Package Width: 19.50
- Package Height: 16.20
- Package Weight: 226.00
Product info last updated on February 28, 2026 6:31pm UTC
Category: Motors
