Three-Phase General Purpose Motor, 7 1/2 HP, 213/5T Frame, 230/460V AC Voltage, 3, 540 Nameplate RPM MPN:36VF31
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1578687

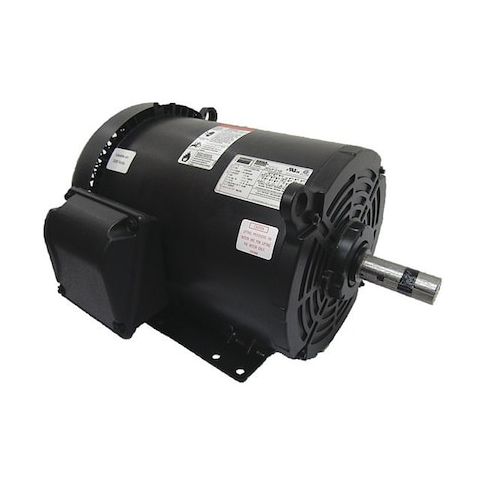

Three-Phase General Purpose Motor, 7 1/2 HP, 213/5T Frame, 230/460V AC Voltage, 3, 540 Nameplate RPM
This 7 1/2 HP three-phase general purpose motor is designed for continuous duty applications, offering high efficiency and reliability in a compact 213/5T frame. With a nameplate RPM of 3,540 and a voltage range of 230/460V AC, this motor is suitable for a wide range of industrial and commercial applications, including pumps, fans, and conveyor systems. Its totally enclosed fan cooled design and steel frame ensure durability and protection from harsh environments, while its ball bearings and Class F insulation provide long-lasting performance and reliability. Ideal for use in factories, warehouses, and other high-demand facilities.
Top product features:
- Three-phase operation for efficient power delivery
- Totally enclosed fan cooled motor enclosure for reliable cooling and protection
- Ball bearings for smooth and durable motor shaft rotation
Top product applications:
- Industrial Pumping Systems
- Centrifugal Compressors
- Chemical Processing Equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 3,540, Frame 213/5T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 17.6/8.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.20
- Package Width: 16.00
- Package Height: 14.00
- Package Weight: 145.00
Product info last updated on February 3, 2026 7:12am UTC
Category: Motors
