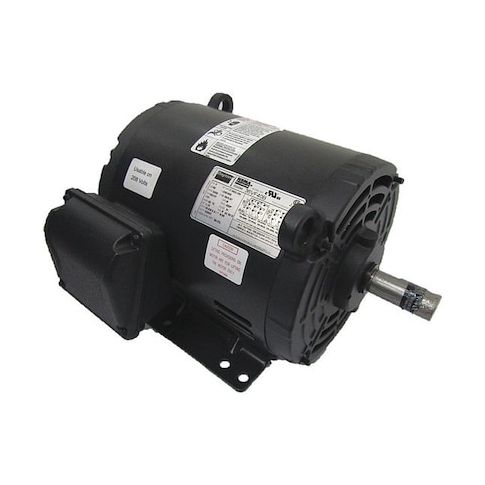

Three-Phase General Purpose Motor, 7 1/2 HP, 182/4T Frame, 230/460V AC Voltage, 3500 Nameplate RPM MPN:36VF40
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1578635
Three-Phase General Purpose Motor, 7 1/2 HP, 182/4T Frame, 230/460V AC Voltage, 3500 Nameplate RPM
This 7 1/2 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. With a nameplate RPM of 3500 and a rugged open drip-proof motor enclosure, it's perfect for heavy-duty operations. The motor's high efficiency rating of 88.5% and continuous duty capability make it an ideal choice for applications that require reliable performance. Suitable for use in environments up to 40°C, this motor is ideal for applications such as manufacturing, material handling, and processing, and meets CSA and UL certification standards. Its compact design and rigid base mounting make it easy to install and maintain.
Top product features:
- Three-phase operation allows for efficient power distribution and utilization.
- Open drip-proof motor enclosure design provides a level of protection against dust and water ingress.
- Ball bearings enable smooth and long-lasting motor shaft rotation.
Top product applications:
- Industrial automation and manufacturing
- Pump and conveyor system drives
- Material handling and packaging equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 3500, Frame 182/4T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 17.3/8.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.00
- Package Width: 16.50
- Package Height: 13.00
- Package Weight: 73.00
Product info last updated on February 11, 2026 11:51pm UTC
Category: Motors
