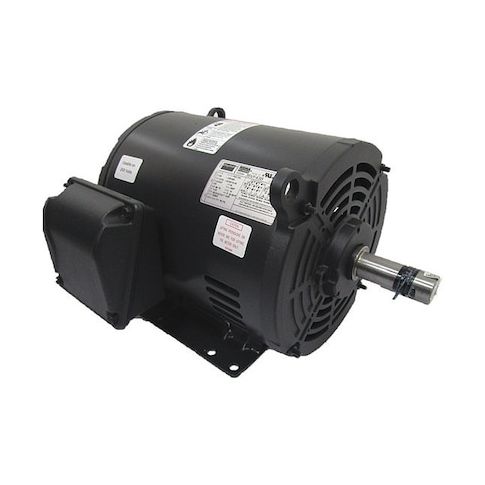

Three-Phase General Purpose Motor, 10 HP, 213/5T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:36VF43
Free Shipping
In Stock
This 10 HP three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial processes, manufacturing facilities, and commercial settings. Its robust construction and durable design ensure reliable performance in demanding environments. With a nameplate RPM of 1,770 and a maximum ambient temperature of 40 degrees C, this motor is suitable for continuous duty operation. Its high efficiency rating of 91.7 percent reduces energy costs and minimizes environmental impact. The motor's rigid base mounting type and ball bearings provide stable operation and extended lifespan, making it an ideal choice for various industrial applications.
Top product features:
- Three-phase operation for efficient power distribution
- Ball motor bearings for smooth and quiet operation
- Continuous duty rating for long-term reliability
Top product applications:
- Pump applications
- Material handling equipment
- Fans and blowers
The DAYTON - 36VF43 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It converts electrical energy into mechanical energy to operate various types of machinery, making it versatile across different sectors from manufacturing lines to HVAC systems.
Key Features of the DAYTON - 36VF43 General Purpose Motor:
- CC Number: The unique identifier CC029A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: This motor has a continuous duty cycle, meaning it is designed for prolonged use under normal operating conditions.
- Frame: Its frame size is 213/5T conforming to standard specifications for compatibility and interchangeability.
- Full Load Amps: Under full load conditions, the motor draws a maximum current of 24.8/12.4 A
- users should ensure their power supply meets these requirements.
- Green Certification or Other Recognition: NEMA Premium Rated certification indicates that this motor meets certain environmental and energy efficiency standards making it an eco-friendly choice.
- Inverter Rated: Yes - indicates compatibility with variable frequency drives for potential control over speed and torque in certain applications.
- Motor Bearings: Equipped with ball bearings intended to minimize friction between moving parts during typical operations.
- Nominal Efficiency: The nominal efficiency rating is 91.7%, representing its performance capability under standard operating conditions
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.30
- Package Width: 16.10
- Package Height: 14.20
- Package Weight: 141.00
