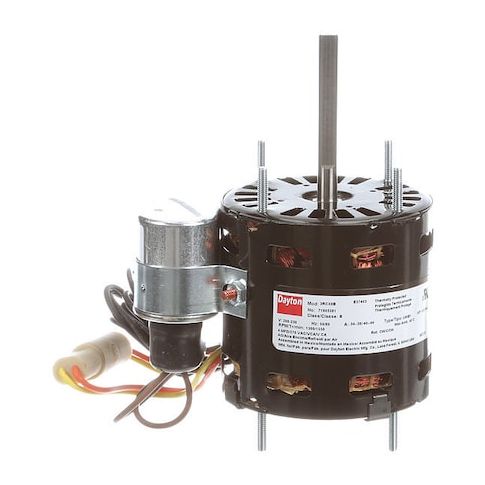

HVAC Motor, 1/20 HP, 1550 rpm, 208-230V, 3.3 MPN:71903581M
HVAC Motor, 1/20 HP, 1550 rpm, 208-230V, 3.3
This 1/20 HP, 1550 rpm HVAC motor from Dayton is a reliable and efficient choice for various applications. Suitable for use in 208-230V environments, it offers a continuous duty cycle and operates at a maximum ambient temperature of 40 Degrees C. The motor's permanent split capacitor design and open air over enclosure make it ideal for applications where space is limited. With a low output wattage of 37 W, it is perfect for small-scale HVAC systems, such as residential units or small commercial spaces. Its compact size and low power consumption make it a cost-effective solution for heating and cooling needs.
Top product features:
- Operates at a continuous duty cycle
- Has a motor thermal protection system for automatic shutdown
- Has a permanent split capacitor design for efficient operation
Top product applications:
- Residential air conditioning units
- Commercial refrigeration equipment
- Small industrial ventilation systems
HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 208-230V AC, 0.4-0.38 A Full Load Amps, 3.3 Frame, Output Watts 37 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.70
- Package Width: 5.40
- Package Height: 3.80
- Package Weight: 3.85
Product info last updated on February 16, 2026 8:26am UTC
Category: Motors
