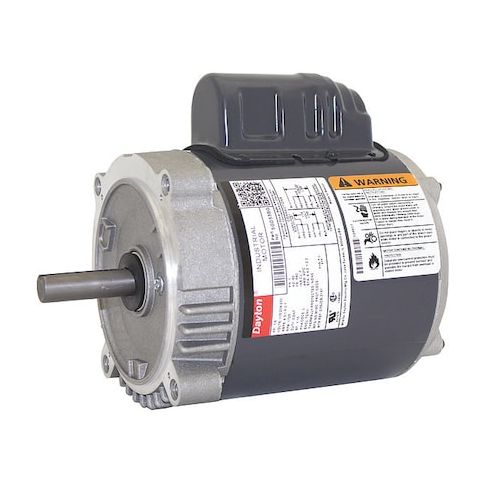

Capacitor-Start General Purpose Motor, 1/6 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:5GD53
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1531853
Capacitor-Start General Purpose Motor, 1/6 hp HP, 115/208-230V AC Voltage, 56C Frame
This 1/6 hp capacitor-start motor from Dayton is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/208-230V AC environments, it can operate at a continuous duty cycle in temperatures up to 40°C. With a single-phase design and totally enclosed non-ventilated enclosure, it provides protection from dust and other contaminants. Its compact size and rigid base make it easy to integrate into existing systems, while its CW/CCW rotation and C-face mounting options offer flexibility in design. Ideal for use in industrial and commercial settings, this motor is a cost-effective and dependable choice for applications requiring low horsepower.
Top product features:
- Capacitor-start design provides efficient starting and running of the motor
- Totally enclosed non-ventilated enclosure protects the motor and surrounding environment from dust and debris
- Continuous duty cycle allows for uninterrupted operation at full load
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/6 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.3/1.9-2.1 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 18.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 6, 2026 1:55am UTC
Category: Motors
