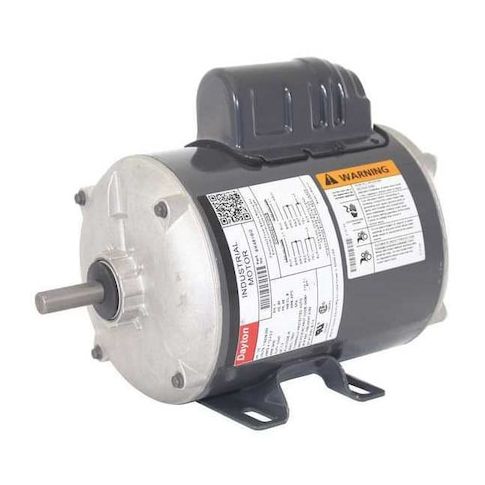

Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 48 Frame MPN:6K481BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1488121
Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 48 Frame
This 1/3 hp Capacitor-Start General Purpose Motor from Dayton is designed for a variety of applications, including industrial and commercial use. Its single-phase, capacitor-start design provides efficient and reliable operation. With a nameplate RPM of 3,450, this motor is suitable for applications requiring high speed and torque. Its totally enclosed non-ventilated (TEFC) design ensures durability and protection from environmental factors. The motor's continuous duty cycle and auto thermal protection make it a reliable choice for applications where consistent performance is crucial. Its compact size and rigid base mounting make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Non-Ventilated Motor Enclosure Design
- Single Phase Motor Design with Capacitor-Start
- Operates at 3,450 RPM
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.7/2.4-2.3 A, 48 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 16.75
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 4, 2026 2:05pm UTC
Category: Motors
