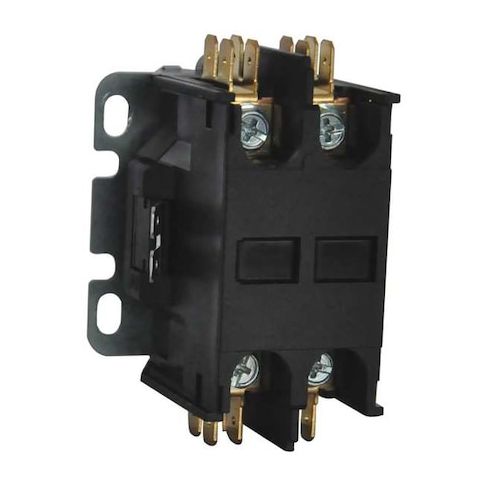

Definite Purpose Magnetic Contactor, 24V AC, 2 P, Non-Reversing, 1 Phase, Box Lug MPN:6GNV1
Free Shipping
In Stock
The DAYTON 6GNV1 is a reliable Definite Purpose Magnetic Contactor designed for heavy-duty applications in various sectors such as HVAC, data processing, and manufacturing. This industrial electrical device operates by responding to electrical impulses, allowing or interrupting power supply based on the need, making it ideal for managing and automating machinery operations. With its non-reversing action, 24V AC coil voltage, and durable silver tin oxide contacts, the 6GNV1 offers high electrical operating durability, frequency compatibility, and compatibility with inductive and resistive loads, making it a valuable tool for controlling power in demanding environments.
Top product features:
- The contactor functions as non-reversing where the current flow direction remains constant.
- It is rated for operation within the specified coil voltage range of 24V AC.
- It is constructed with Silver Tin Oxide which influences conductivity, durability, and resistance to corrosion.
Top product applications:
- HVAC
- Data processing
- Manufacturing
The DAYTON - 6GNV1 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: The contactor functions as non-reversing where the current flow direction remains constant.
- Coil Voltage: Rated for operation within the specified coil voltage range of 24V AC.
- Contact Material: Constructed with Silver Tin Oxide which influences conductivity, durability, and resistance to corrosion.
- Electrical Operating Durability: Has been tested for electrical operation up to 200,000 cycles under standard conditions.
- Frequency: Compatible with electrical cycles per second measured at a frequency of 50/60 Hz
- Full Load Amps-Inductive & Resistive: Rated for handling specified maximum currents continuously when controlling inductive loads (40 A) or resistive/heating loads (50 A).
- Horsepower @ Single Phase - Rated for compatibility with specific power outputs on single-phase systems at both 120-volt (2 hp) and 240-volt (3 hp) alternating current systems.
- Mechanical Operating Durability: Tested for mechanical operation up to half a million cycles under standard conditions
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.90
- Package Height: 2.50
- Package Weight: 0.15
