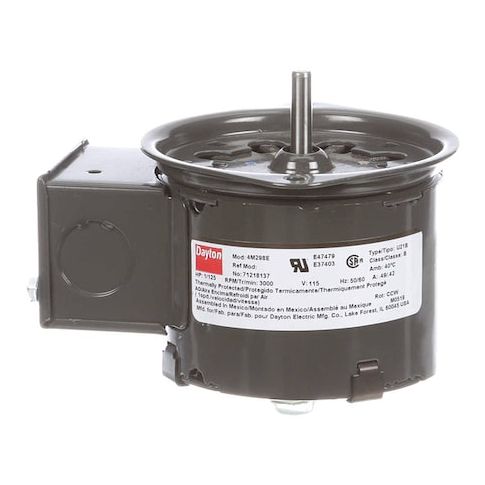

HVAC Motor, 1/125 HP, 3000 rpm, 115V, 3.3 MPN:71218137M
HVAC Motor, 1/125 HP, 3000 rpm, 115V, 3.3
This Dayton HVAC motor is a reliable and efficient solution for various applications, including residential and commercial heating and cooling systems. With a 1/125 HP rating and 3000 rpm, it provides smooth and quiet operation. Its compact 3.3 frame size makes it ideal for use in tight spaces. The motor's shaded pole design and 115V single-phase operation make it easy to integrate into existing systems. Its continuous duty cycle and high ambient temperature rating ensure reliable performance in demanding environments. Suitable for use in applications such as air handlers, fan coils, and evaporative coolers.
Top product features:
- Operates at 3000 rpm
- Thermal protection is automatic
- Shaft rotates counterclockwise
Top product applications:
- Air Conditioning Units
- Central Air Handlers
- Window Air Conditioners
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/125 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 0.49 A Full Load Amps, 3.3 Frame, Output Watts 6 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Flange, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 6.70
- Package Height: 5.70
- Package Weight: 2.80
Product info last updated on March 6, 2026 2:57pm UTC
Category: Motors
