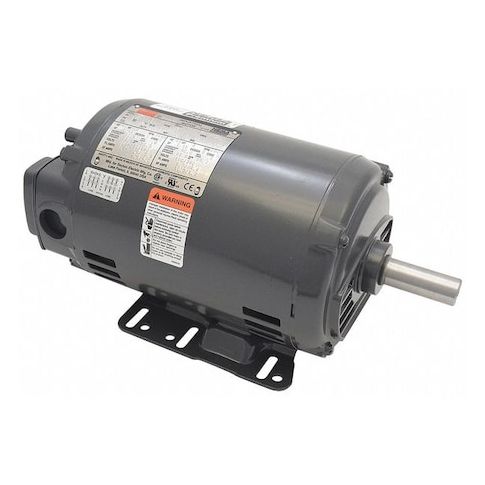

Three-Phase General Purpose Motor, 3 HP, 143/5T Frame, 208-230/460V AC Voltage, 3485 Nameplate RPM MPN:53DD29
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1455288
Three-Phase General Purpose Motor, 3 HP, 143/5T Frame, 208-230/460V AC Voltage, 3485 Nameplate RPM
This Dayton 3 HP three-phase general purpose motor is designed for a variety of applications, including industrial and commercial use. Its open drip-proof enclosure and rigid base motor mounting type make it suitable for environments where exposure to dust and moisture is a concern. With a nameplate RPM of 3485 and a maximum ambient temperature of 40 degrees C, this motor can operate efficiently in a range of conditions. Its high efficiency and continuous duty capabilities make it an ideal choice for applications such as pumps, fans, and conveyor systems, where reliability and performance are critical.
Top product features:
- Three-phase operation for efficient power distribution
- Open drip-proof motor enclosure design for protection against dust and moisture
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial Power Generation
- Factory Automation Systems
- Pump and Fan Applications
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 3485, Frame 143/5T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 7.8-7.0/3.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 12.00
- Package Height: 9.50
- Package Weight: 50.98
Product info last updated on February 20, 2026 4:45am UTC
Category: Motors
