Washdown Motor, TEFC, 2 HP, 1740 rpm, 145TC MPN:48ZJ96
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1455218

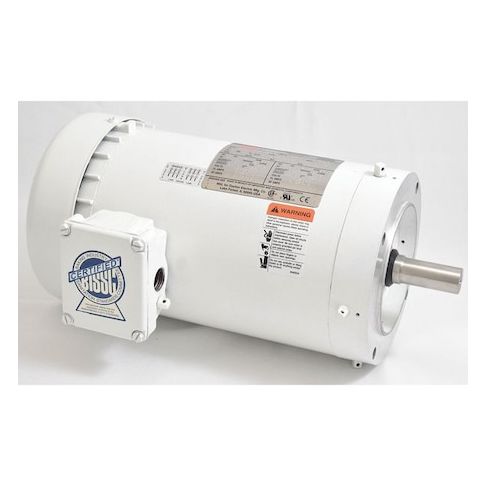

Washdown Motor, TEFC, 2 HP, 1740 rpm, 145TC
The Dayton Washdown Motor is a reliable and efficient solution for applications requiring continuous operation in harsh environments. Designed for three-phase power, this 2 HP motor operates at 1740 rpm and features a totally enclosed fan-cooled (TEFC) design for maximum protection. Its compact 145TC frame and CW/CCW rotation make it ideal for use in various industries, including food processing, pharmaceuticals, and chemical manufacturing. With a service factor of 1.15 and a maximum ambient temperature of 40°C, this motor provides consistent performance in demanding conditions, reducing downtime and increasing productivity.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and protection from environmental factors
- Motor Shaft Rotation in both Clockwise and Counterclockwise directions for increased versatility and flexibility
- Continuous Duty Cycle capability for uninterrupted operation and reliable performance
Top product applications:
- Food Processing
- Conveyor Systems
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 6.0/2.8 A, 145TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Inverter Rating Not Applicable, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.50
- Package Height: 19.40
- Package Weight: 46.50
Product info last updated on February 10, 2026 5:43pm UTC
Category: Motors
