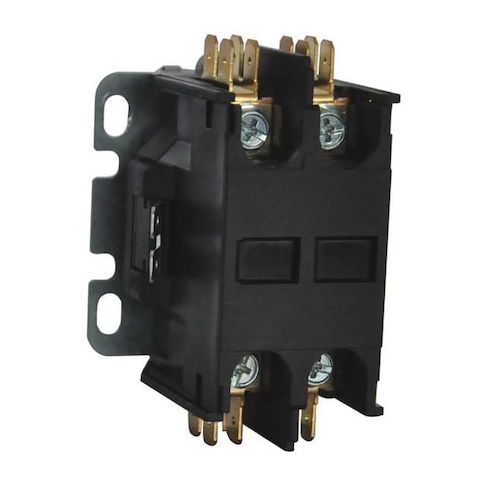

Definite Purpose Magnetic Contactor, 208V-240V AC, 2 P, Non-Reversing, 1 Phase, Screw MPN:6GNY8
Free Shipping
In Stock
The Dayton 6GNY8 Definite Purpose Magnetic Contactor is a reliable and efficient industrial electrical device designed for heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need, making it ideal for managing and automating machinery operations in various sectors such as HVAC, data processing, and manufacturing. This contactor offers benefits including non-reversing functionality, high conductivity, and resistance to corrosion, ensuring smooth and durable operation. Its compact design and versatility make it suitable for a wide range of applications, including control of inductive loads up to 25A and power output up to 3hp.
Top product features:
- The contactor functions as non-reversing where the current flow direction remains constant.
- The coil within this contactor effectively engages or disengages its electrical circuit at a voltage range of 208V-240V AC.
- The contact material is made from Silver Cadmium Oxide which influences conductivity, durability, and resistance to corrosion.
Top product applications:
- HVAC
- Data processing
- Manufacturing
The DAYTON - 6GNY8 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: The contactor functions as non-reversing where the current flow direction remains constant.
- Coil Voltage: The coil within this contactor effectively engages or disengages its electrical circuit at a voltage range of 208V-240V AC.
- Contact Material: Made from Silver Cadmium Oxide which influences conductivity, durability, and resistance to corrosion.
- Electrical Operating Durability: Has been tested for electrical operation up to 200,000 cycles under standard conditions.
- Frequency: Rated for operation within the specified frequency range of 50/60 Hz
- Full Load Amps-Inductive & Resistive: Rated for continuous control of inductive loads up to a maximum current indicated by Full Load Amps-Inductive at 25 A and Full Load Amps-Resistive at 30 A
- Horsepower @ Single Phase -120V & 240V AC : The product's capacity while operating on a single-phase alternating current electrical system is rated up to a maximum power output of: -2 hp for systems using an input voltage around120V AC -3 hp for systems using an input voltage around 240V AC
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 2.70
- Package Height: 2.50
- Package Weight: 0.60
