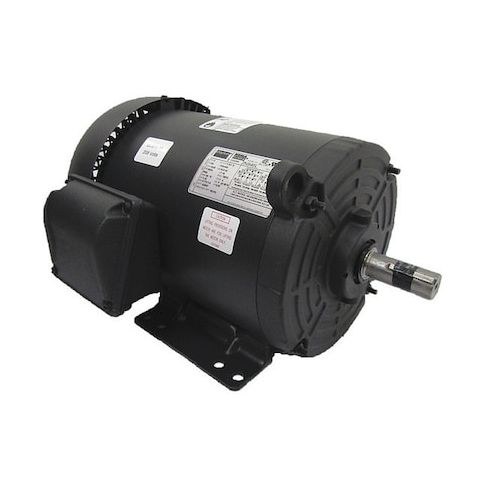

Three-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 3455 Nameplate RPM MPN:2N946
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1420334
Three-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 3455 Nameplate RPM
This 1.5 HP three-phase general purpose motor from Dayton is designed for heavy-duty applications requiring continuous duty operation. With a totally enclosed fan cooled motor enclosure and rigid base mounting, it provides reliable performance in demanding environments. Its high efficiency rating of 84% and ball bearings ensure smooth operation and minimize maintenance. Suitable for use in industrial settings, such as manufacturing facilities, warehouses, and factories, this motor can handle a wide range of tasks, including material handling, pumping, and conveyor systems. Its compact design and CSA/UL certification make it a reliable choice for a variety of industrial applications.
Top product features:
- Three-Phase General Purpose Motor is designed for continuous duty operation.
- The motor has a Totally Enclosed Fan Cooled Motor Enclosure Design for reliable and efficient cooling.
- The motor features Ball Motor Bearings for reduced wear and tear.
Top product applications:
- Pumps and water treatment systems
- Fans and blowers in HVAC systems
- Conveyors and material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3455, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.9/1.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.30
- Package Width: 15.30
- Package Height: 12.30
- Package Weight: 65.00
Product info last updated on April 17, 2026 5:07pm UTC
Category: Motors
