Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56HZ Frame MPN:6K418
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1385562

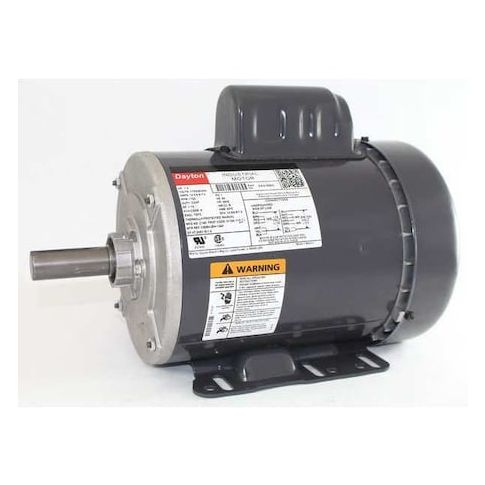

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56HZ Frame
The Dayton Capacitor-Start General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in environments with temperatures up to 40 degrees C, this motor is perfect for industrial settings, such as manufacturing facilities, warehouses, and assembly lines. With a continuous duty cycle and totally enclosed fan cooled design, it provides reliable operation and long lifespan. The motor's single-phase design and capacitor-start design make it easy to integrate into existing systems, while its 1.15 service factor ensures optimal performance under varying loads. Ideal for applications requiring 1 hp of power.
Top product features:
- Totally Enclosed Fan Cooled motor design for increased durability and reliability
- Continuous duty cycle for uninterrupted operation
- 56HZ frame design for compact installation and reduced footprint
Top product applications:
- Pump
- Air Compressor
- Conveyor System
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.0/6.9-7.0 A, 56HZ Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 36.00
Product info last updated on February 9, 2026 10:14am UTC
Category: Motors
